Washing accessories

Original accessories and spare parts for professional sprayers and foamers. Lances, hoses, wheels, funnels, nozzles, heads and technical components compatible with Lanzoni machines.

Request information Download PDF catalogue

Components designed for professional use

A selection of accessories designed to maintain efficiency, practicality and operational continuity over time. Each component is chosen to ensure reliability, ease of replacement and consistency with Lanzoni manufacturing standards.

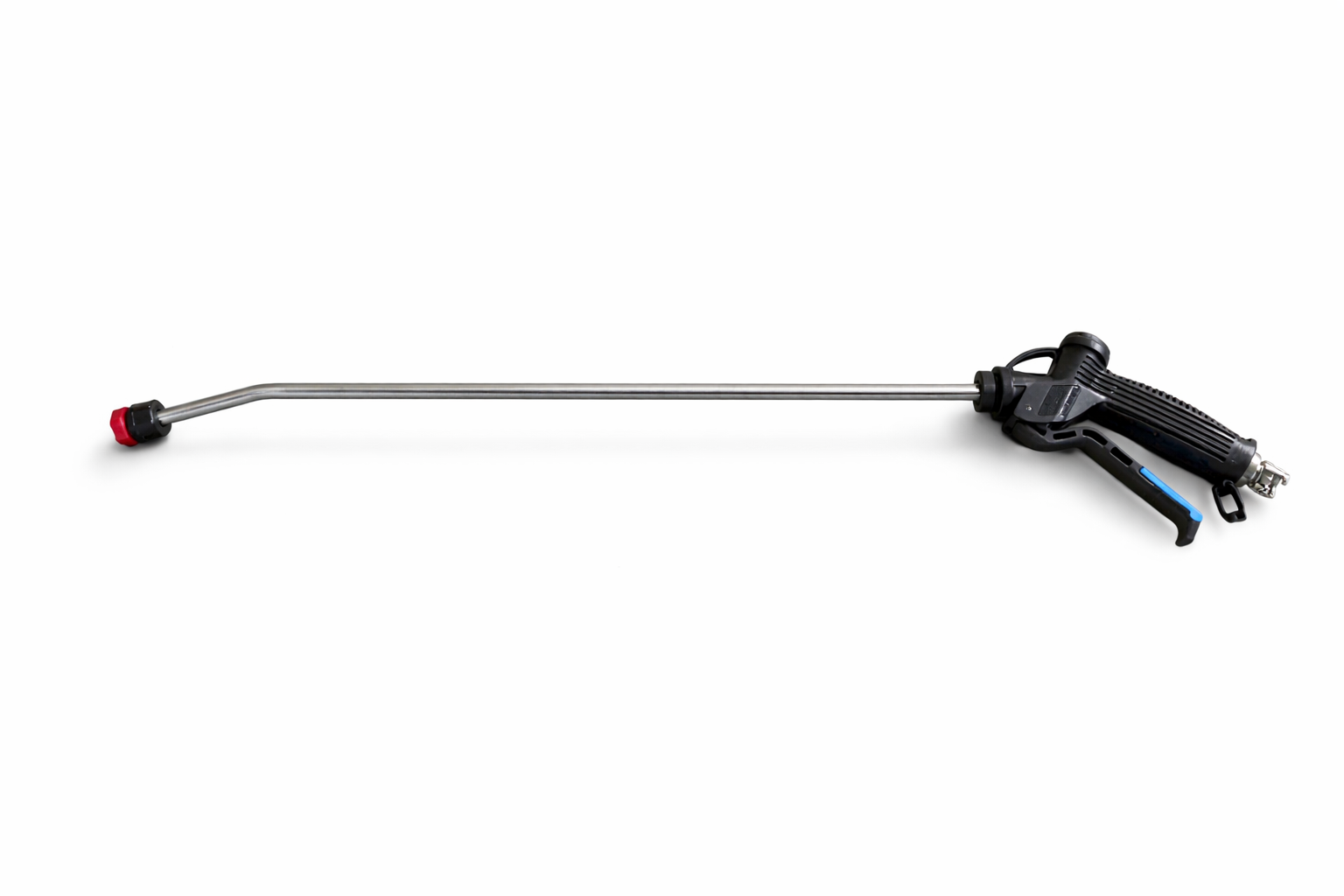

Professional lance for Lanzoni sprayers and foamers

Lances and guns

Professional lances for washing, spraying and foaming applications. Available in different lengths and materials to suit different operational requirements.

Art. LC-1 : 600 mm stainless steel lance with knurled nut

Art. LC-1P : 600 mm plastic lance with knurled nut

Art. LC-2 : 750 mm stainless steel lance with knurled nut

Art. LC-3 : 1500 mm stainless steel lance with knurled nut

Art. LC-4 : 2000 mm telescopic stainless steel lance with knurled nut

Art. LC-5 : 1100 mm stainless steel lance with knurled nut

Art. LC-6 : 1200 mm PVC lance with knurled nut

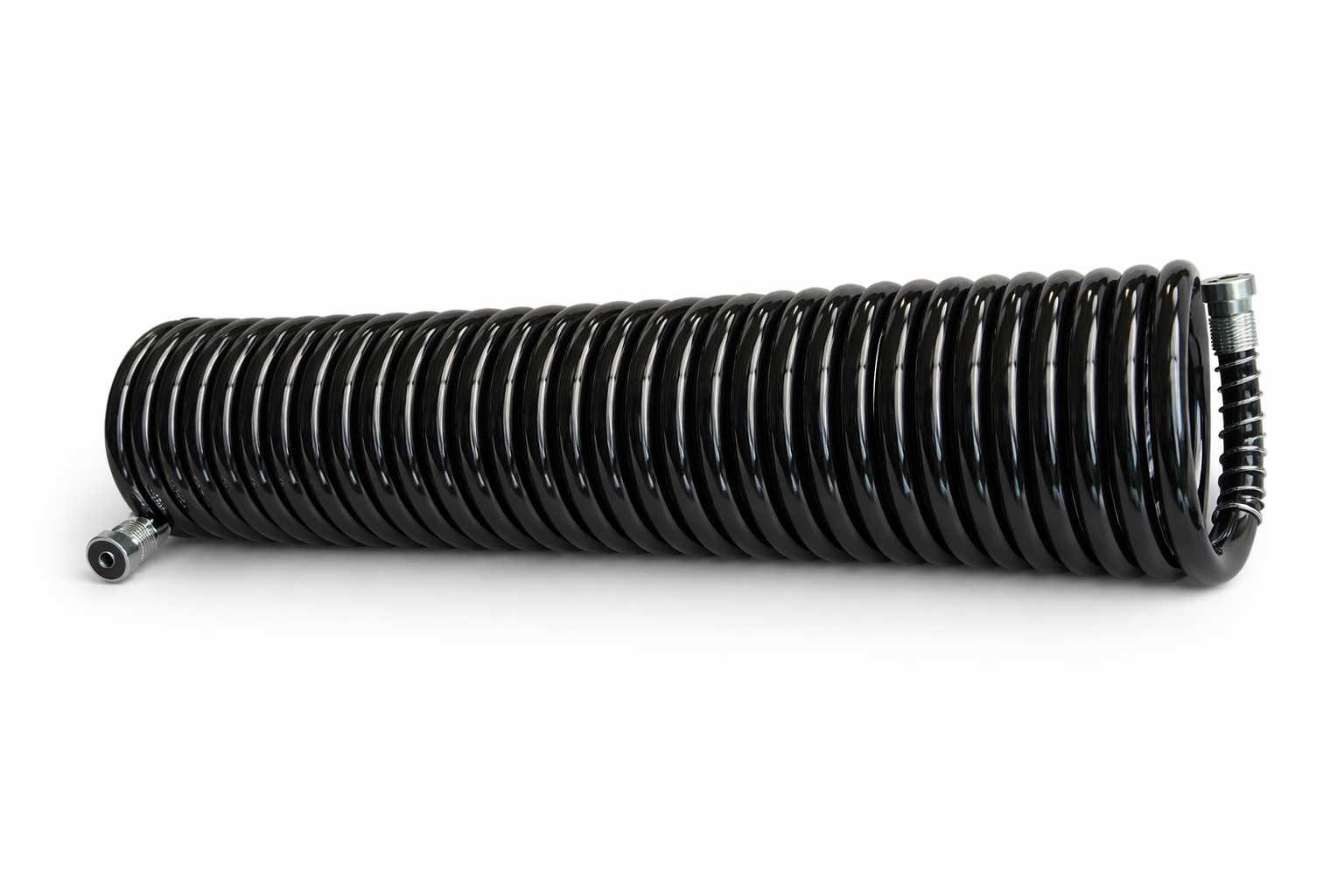

Hoses and connections

Delivery hoses, flexible connections and spiral versions for different operating needs. Solutions designed to withstand intensive professional use.

Art. SP7 : Rilsan braided hose diam. 8 mm – length 7 m

Art. SP10 : Rilsan braided hose diam. 8 mm – length 10 m

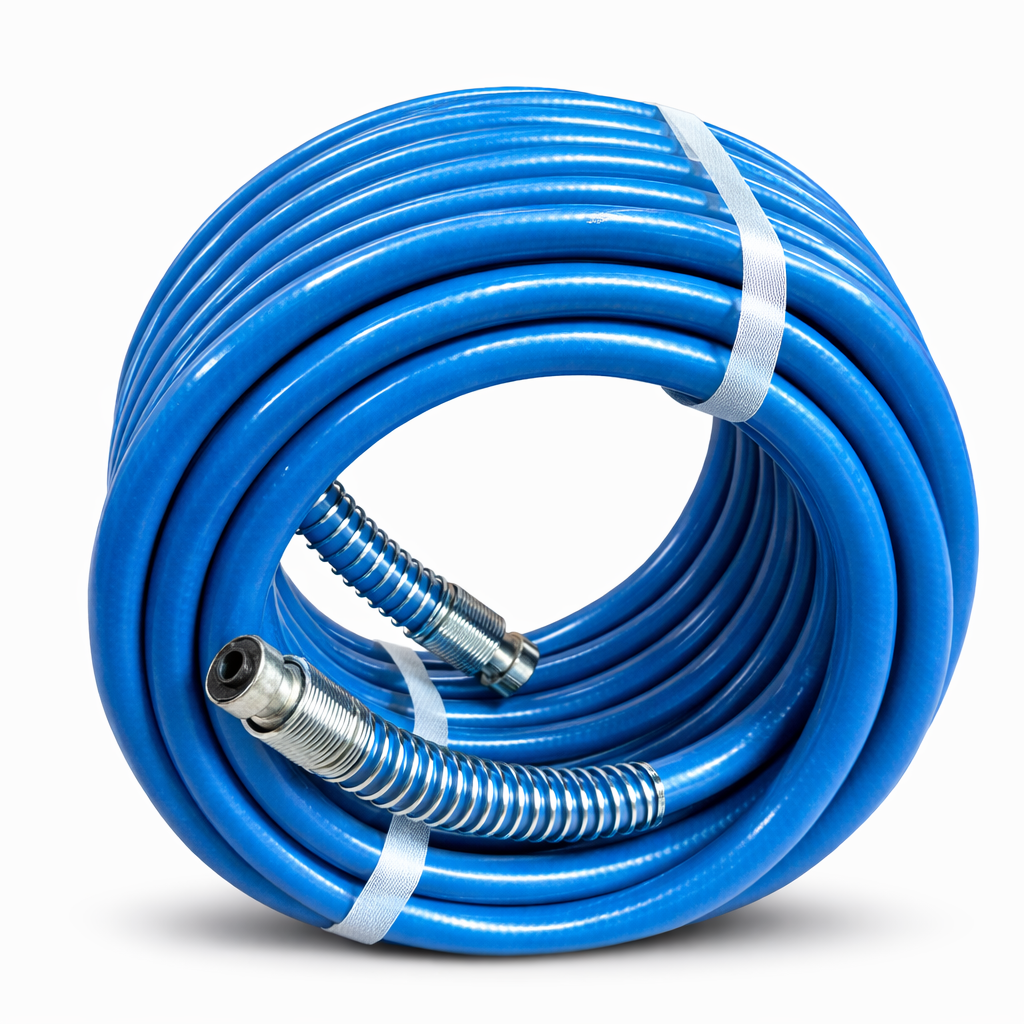

Art. TN10 : polyurethane hose 8x13 mm – length 10 m

Art. TN10/1 : polyurethane hose 10x15 mm – length 10 m

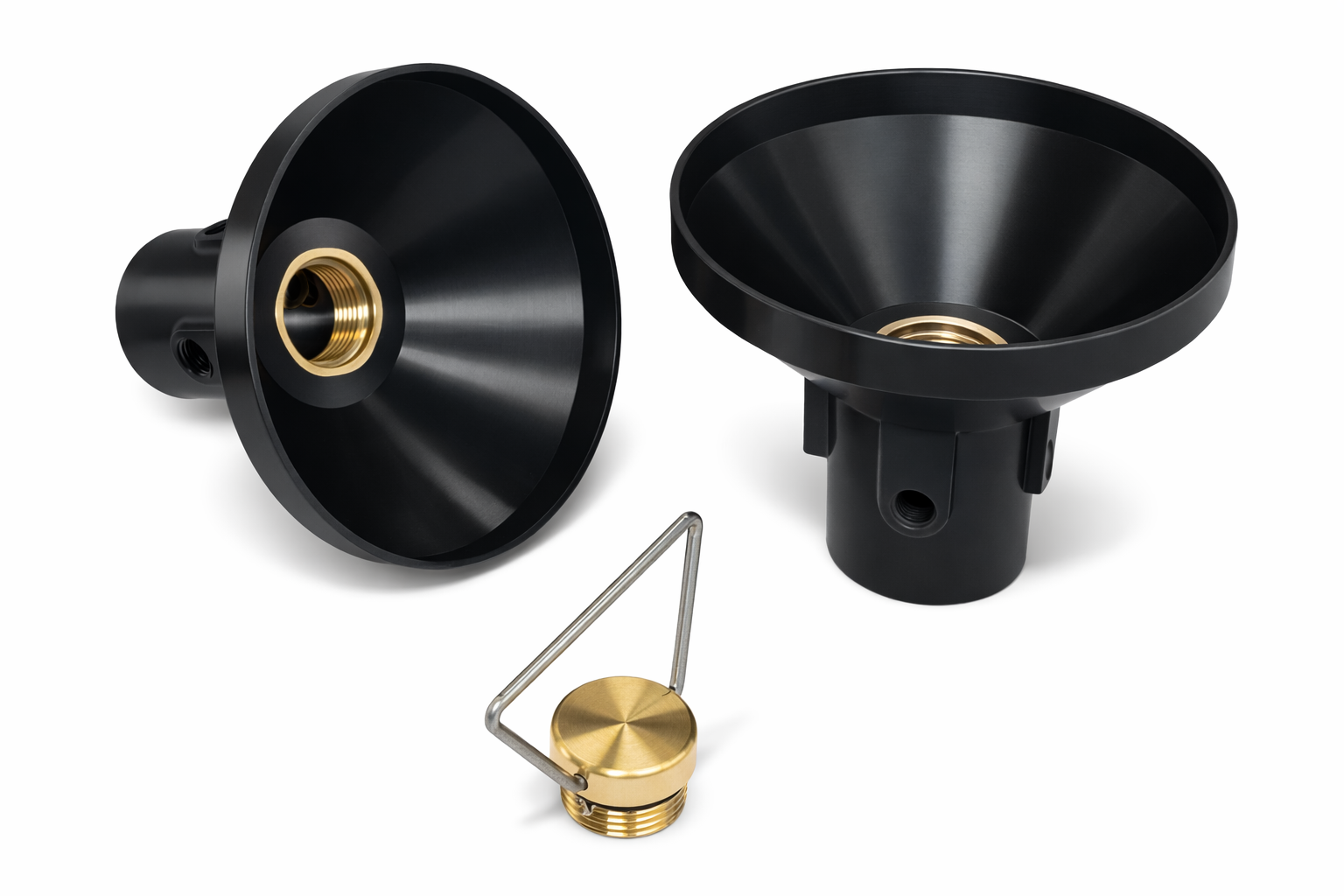

Lanzoni technical funnels

Lanzoni funnels are made of high-performance technical material based on glass fiber reinforced polyamide, designed to ensure high mechanical strength, dimensional stability and long-term durability even under intensive use conditions.

The thread is integrated through a brass insert, a solution that prevents wear of the plastic material and ensures precise, reliable and repeatable closure over time.

The cap with mechanical safety system ensures stable closure during pressurized use, reducing the risk of accidental opening.

Technical features:

– Material: glass fiber reinforced technical polyamide
– High mechanical strength and rigidity
– Excellent dimensional stability
– Low moisture absorption
– Resistance to stress and creep over time
– Brass threaded insert
– Mechanical safety locking system

Technical note: the use of a brass insert in the thread eliminates one of the main weak points of plastic components, ensuring greater durability, coupling precision and long-term reliability.

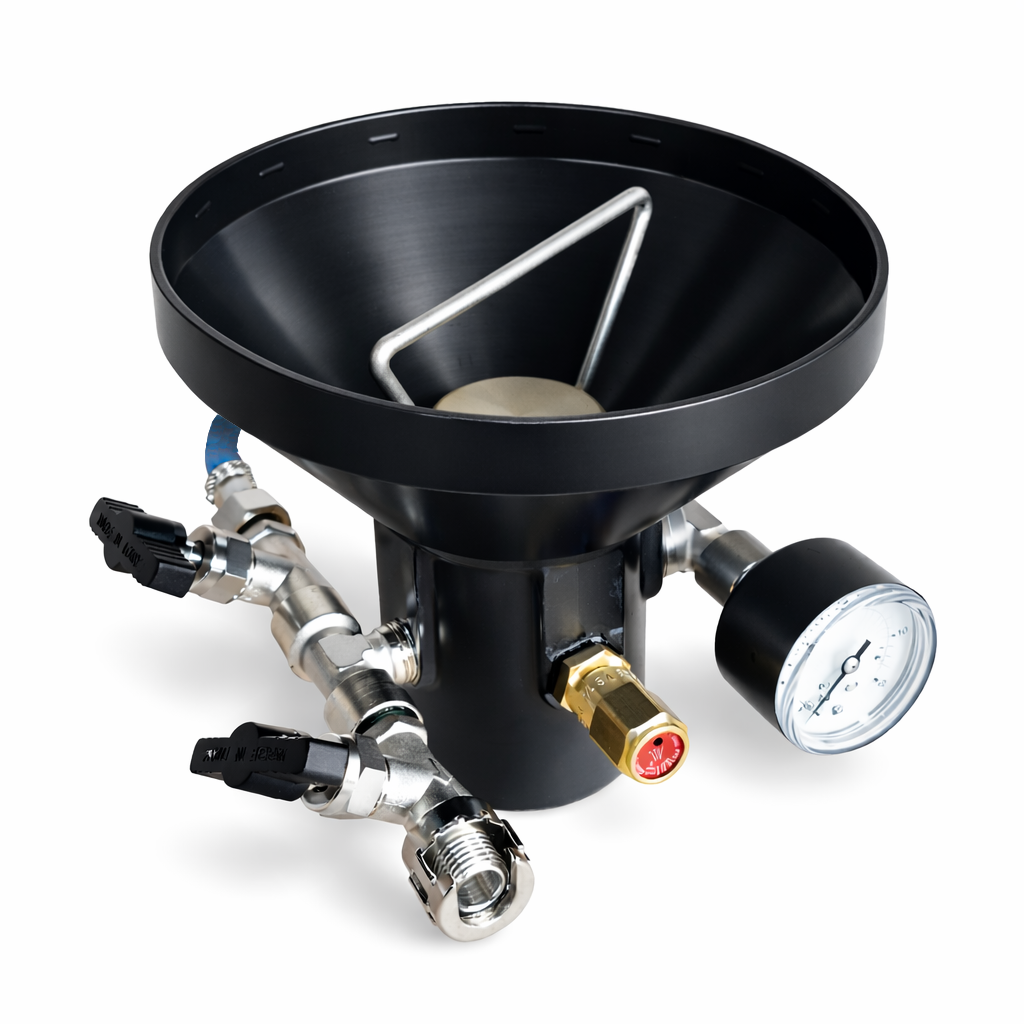

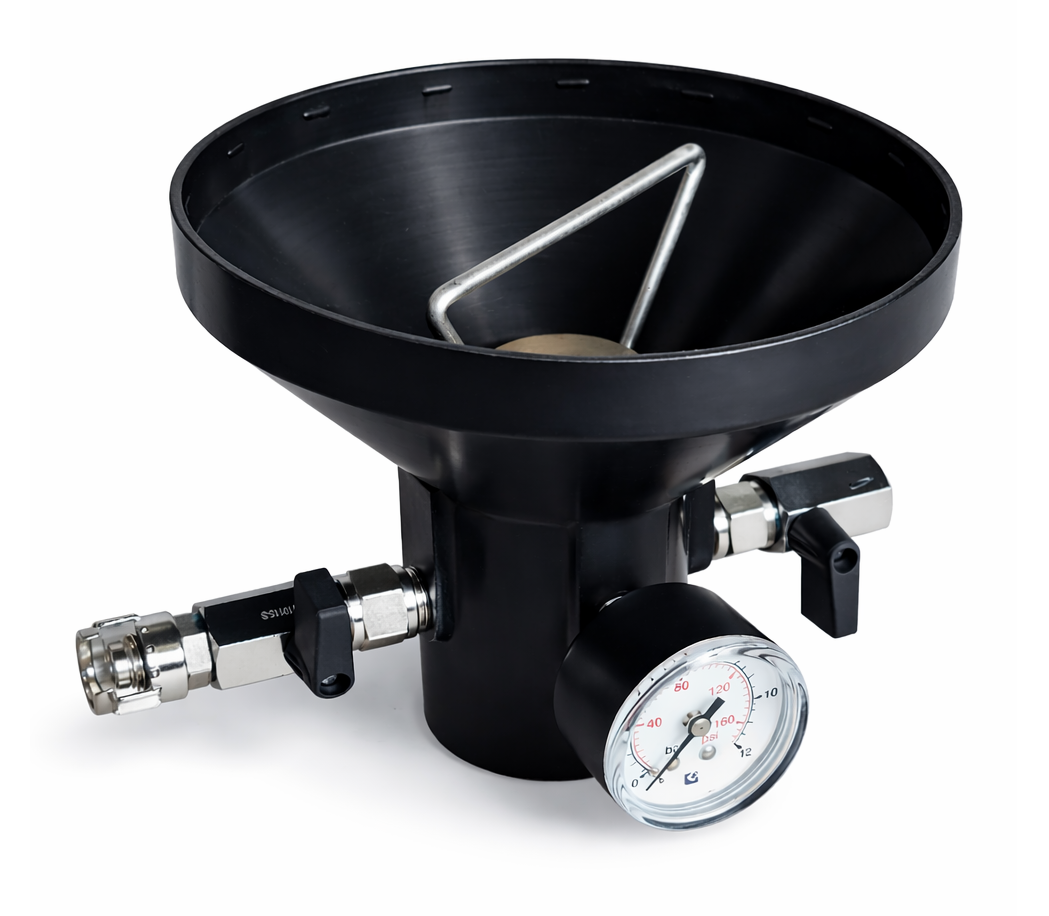

Funnels and upper assemblies

Funnels and complete upper assemblies for product filling and handling, available in different configurations depending on the model and application.

Art. C-N : funnel for sprayer

Art. C-S : funnel for foamer

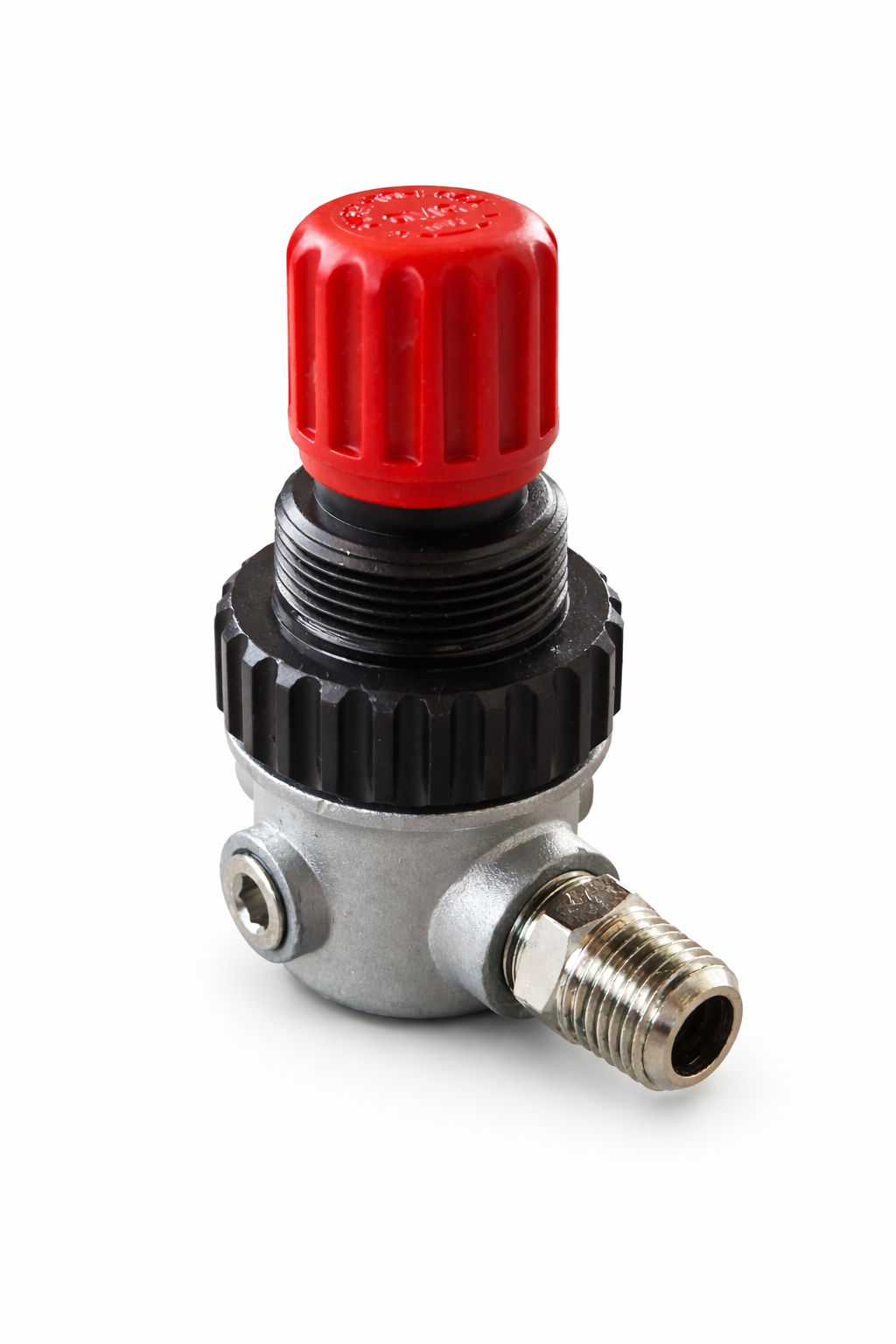

RGN pressure regulator for sprayers and foamers

Filters and internal components

Functional components useful for preserving the correct liquid flow and contributing to regular application.

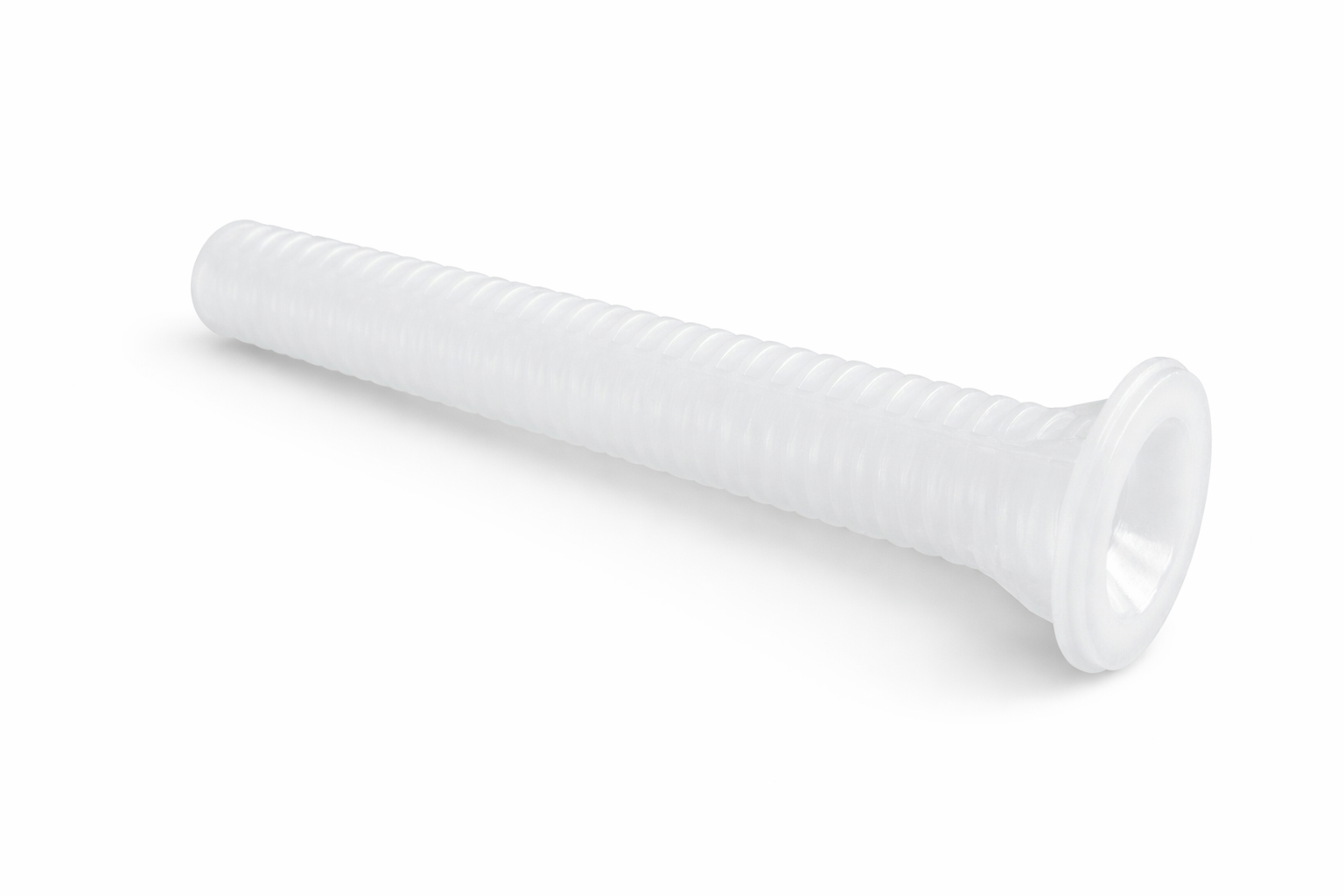

Art. FLT : insert filter

Art. RGN : air line pressure regulator

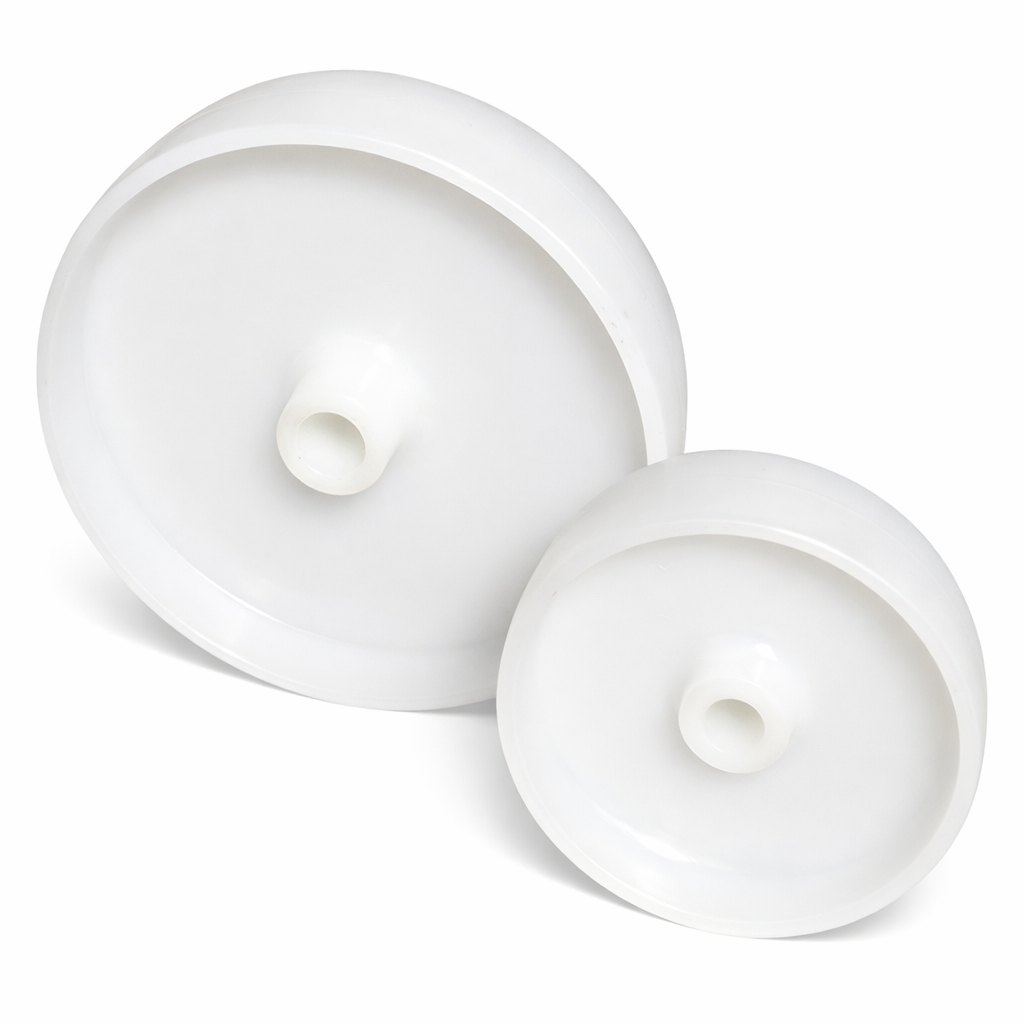

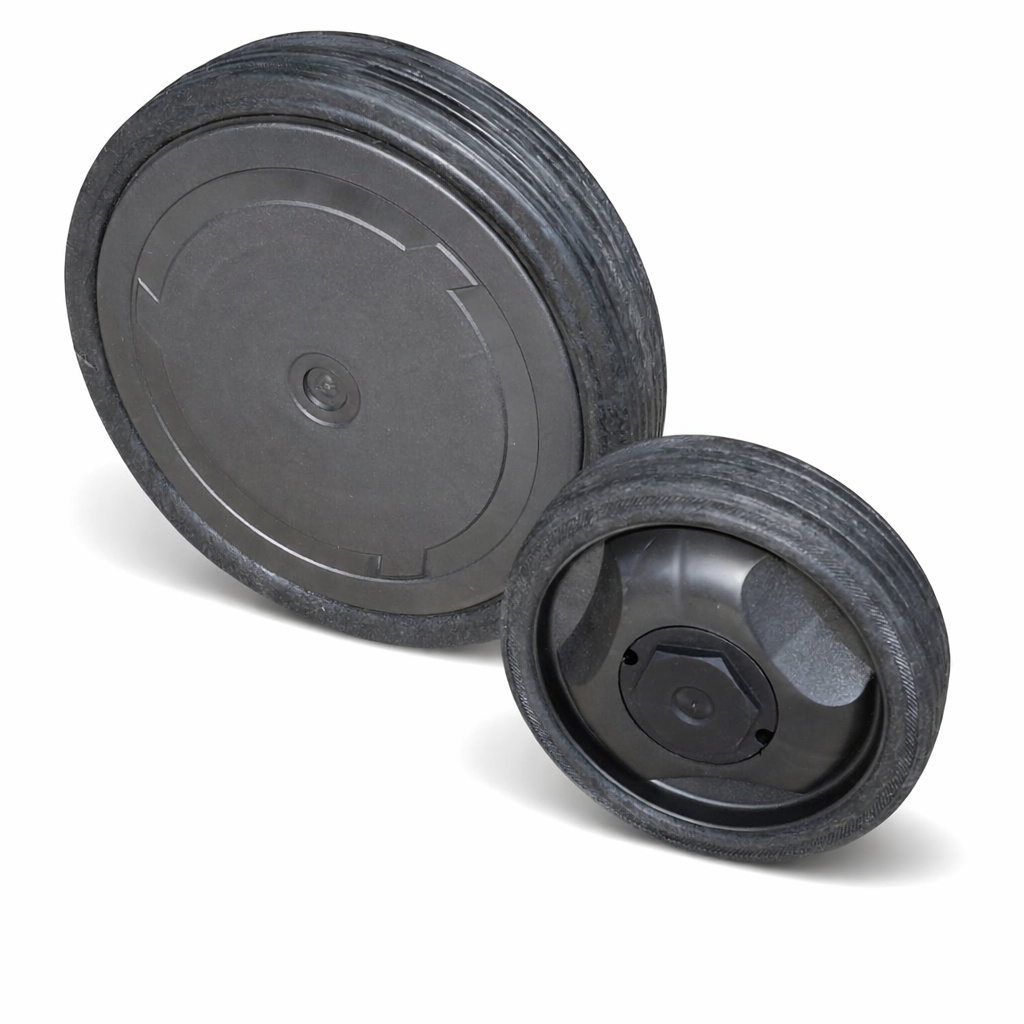

Standard and nylon wheels

Wheels available in different versions to suit the sector of use and the needs of handling, cleaning and wear resistance.

Art. 92-8385-07 : black rubber wheel diam. 125 mm (1 pc)

Art. 93-8385-08 : black rubber wheel diam. 200 mm (1 pc)

Art. WW125 : white NYLON wheel diam. 125 mm (1 pcs)

Art. WW200 : white NYLON wheel diam. 200 mm (1 pcs)

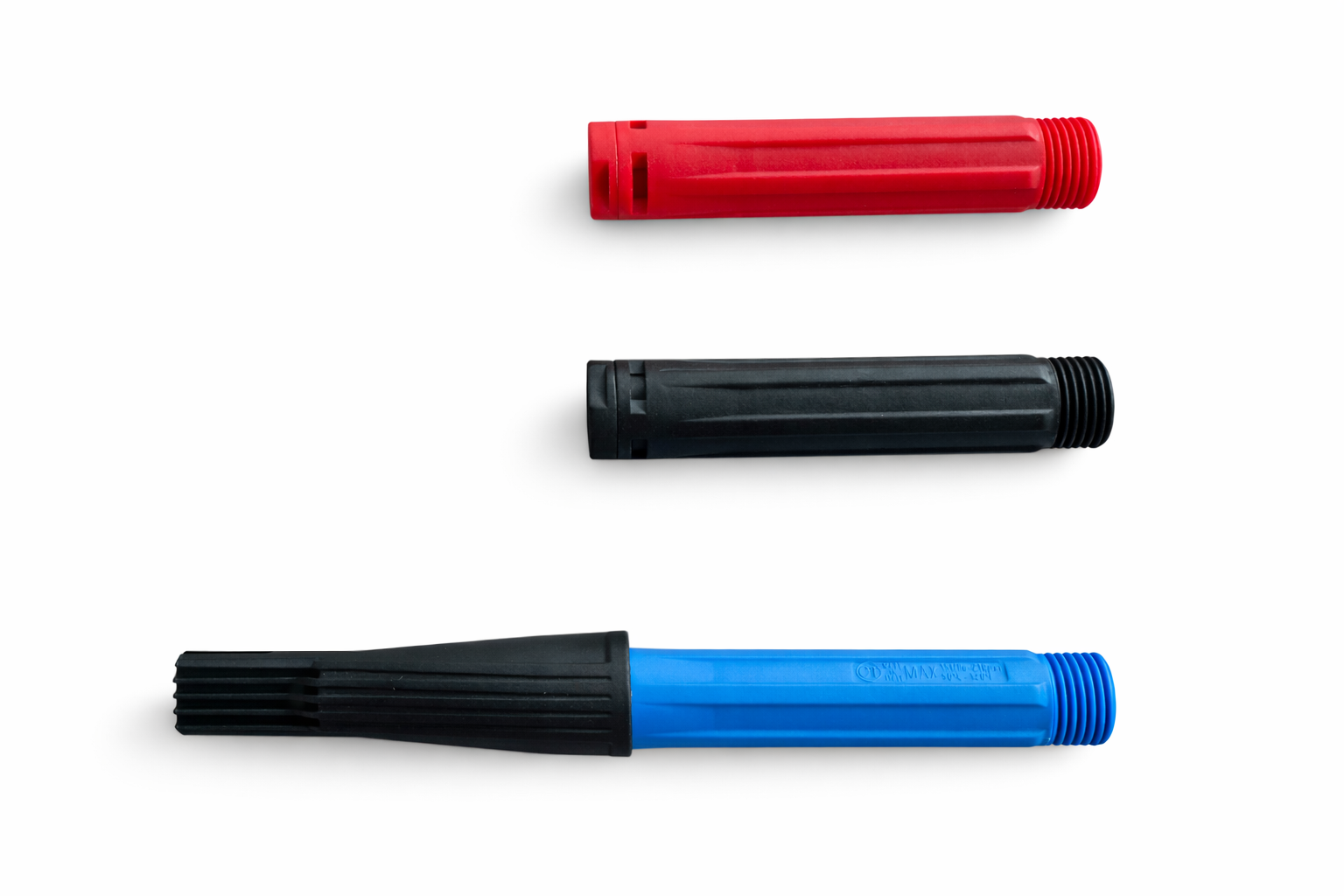

Foam heads

Heads and components dedicated to foam generation, with sealing elements useful for the correct operation of the dispensing assembly.

Art. TSCG : foaming head (BLACK)

Art. TSCG2 : Super foaming head (RED)

Art. TSCG3 : foaming head for SPRAYERS

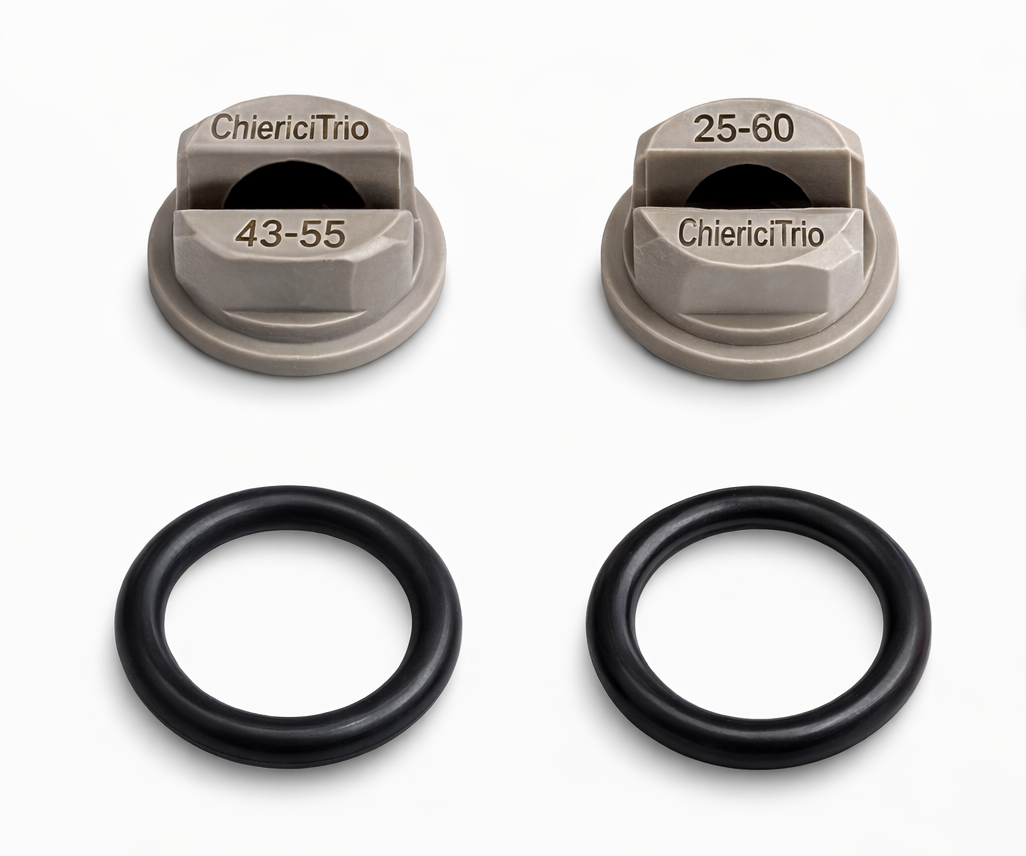

Foam nozzles and terminals

Selection of components to adapt foam density, delivery and final configuration according to the required application.

Art. UGS2 : plastic foam nozzle (9.8 l/min)

Art. UGS3 : plastic foam nozzle (16.8 l/min)

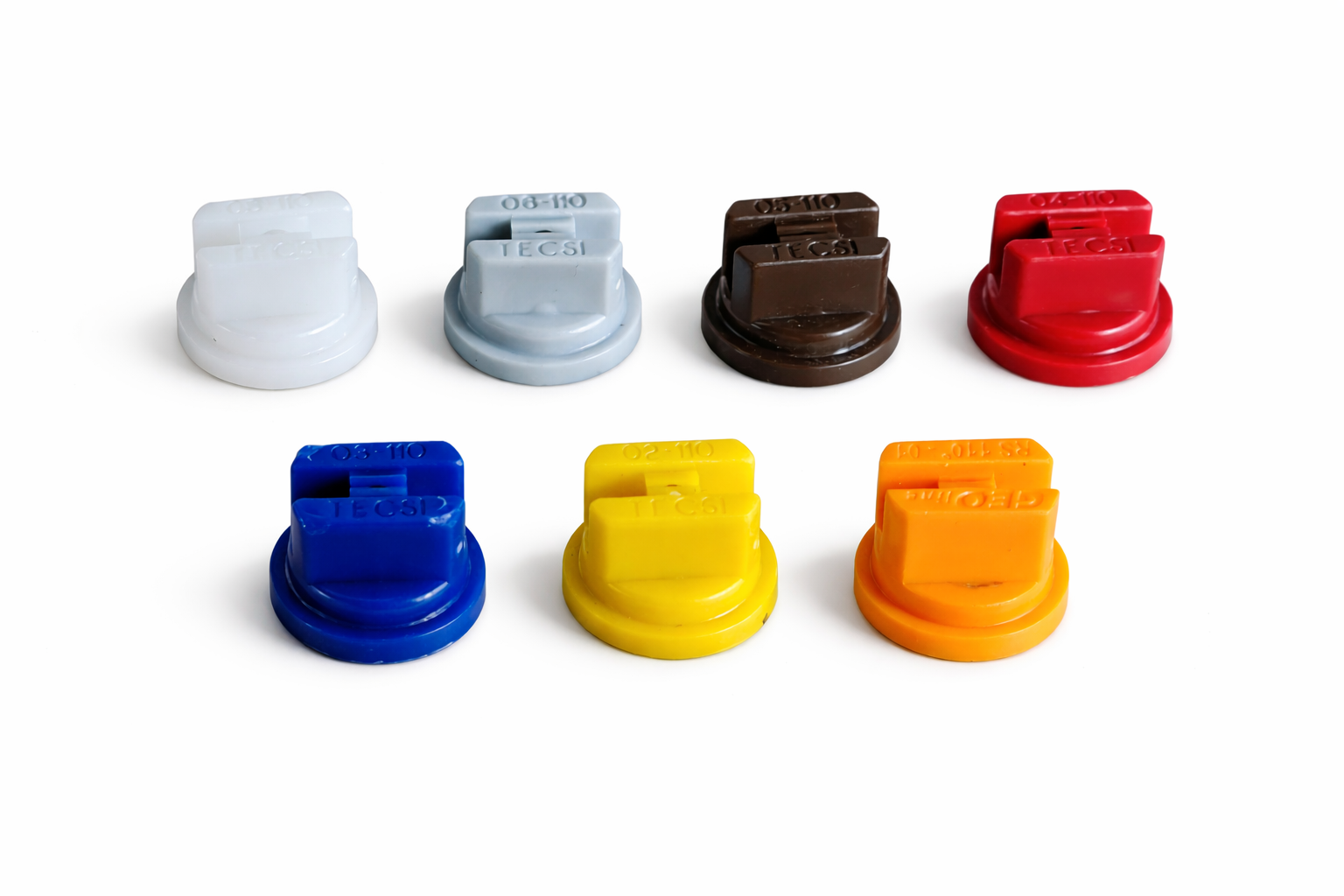

Spray nozzles

Nozzles in different versions and materials to adjust flow rate, angle and application mode, with solutions for various professional uses.

Art. UG-1 : 110° nozzle - 0.6 - orange

Art. UG-2 : 110° nozzle - 0.9 - yellow

Art. UG-3 : 110° nozzle - 1.1 - blue

Art. UG-4 : 110° nozzle - 1.3 - red

Art. UG-5 : 110° nozzle - 1.4 - brown

Art. UG-6 : 110° nozzle - 1.6 - grey

Art. UG-7 : 110° nozzle - 1.8 - white

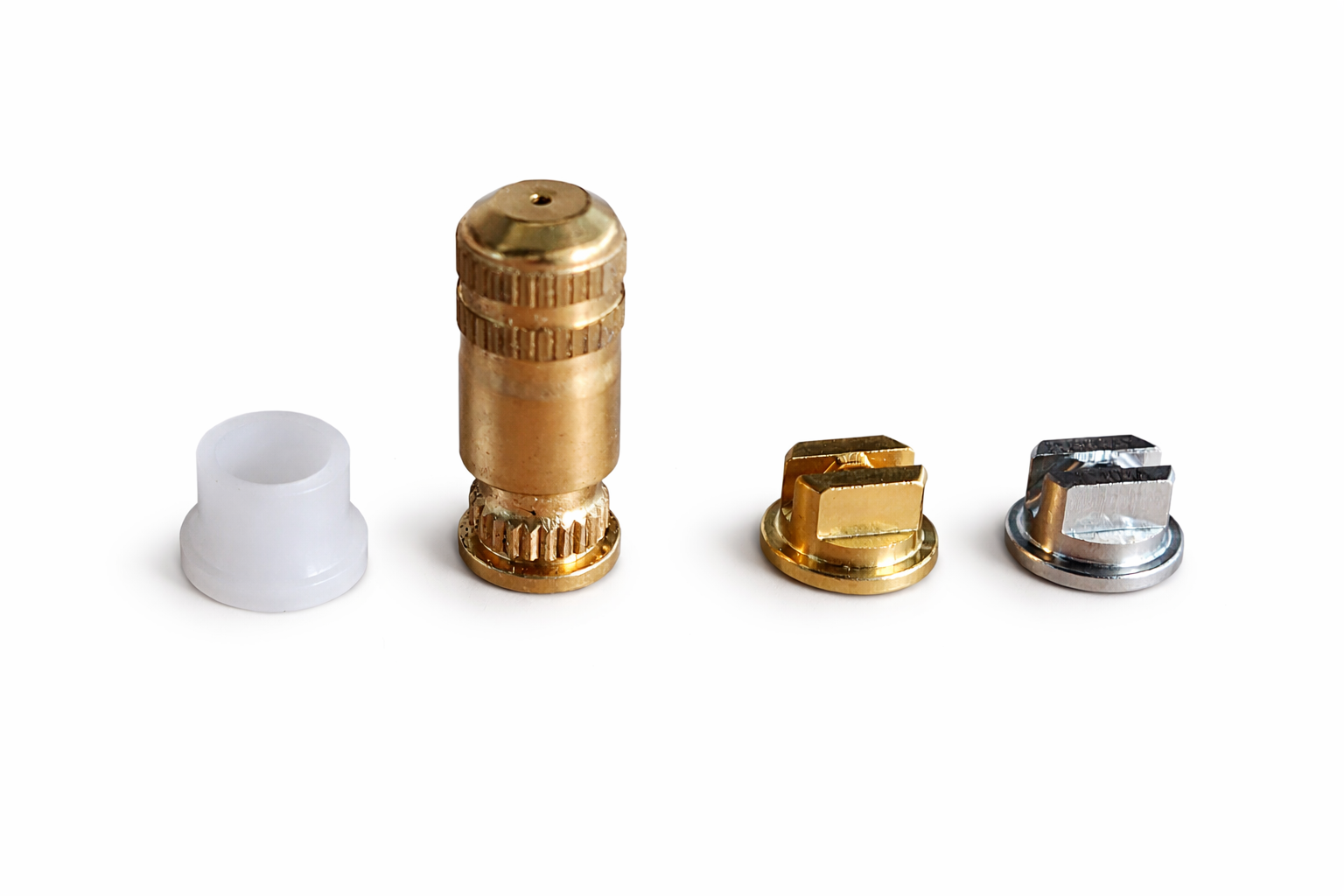

Art. UGBR : brass flat fan nozzle

Art. UGSS : stainless steel flat fan nozzle

Art. UGRG : adjustable brass nozzle

Art. 92-2600-20 : gun spacer

Spare parts & service: to speed up the evaluation, we suggest sending us the machine model and, whenever possible, one or more photos of the component to be replaced or checked.

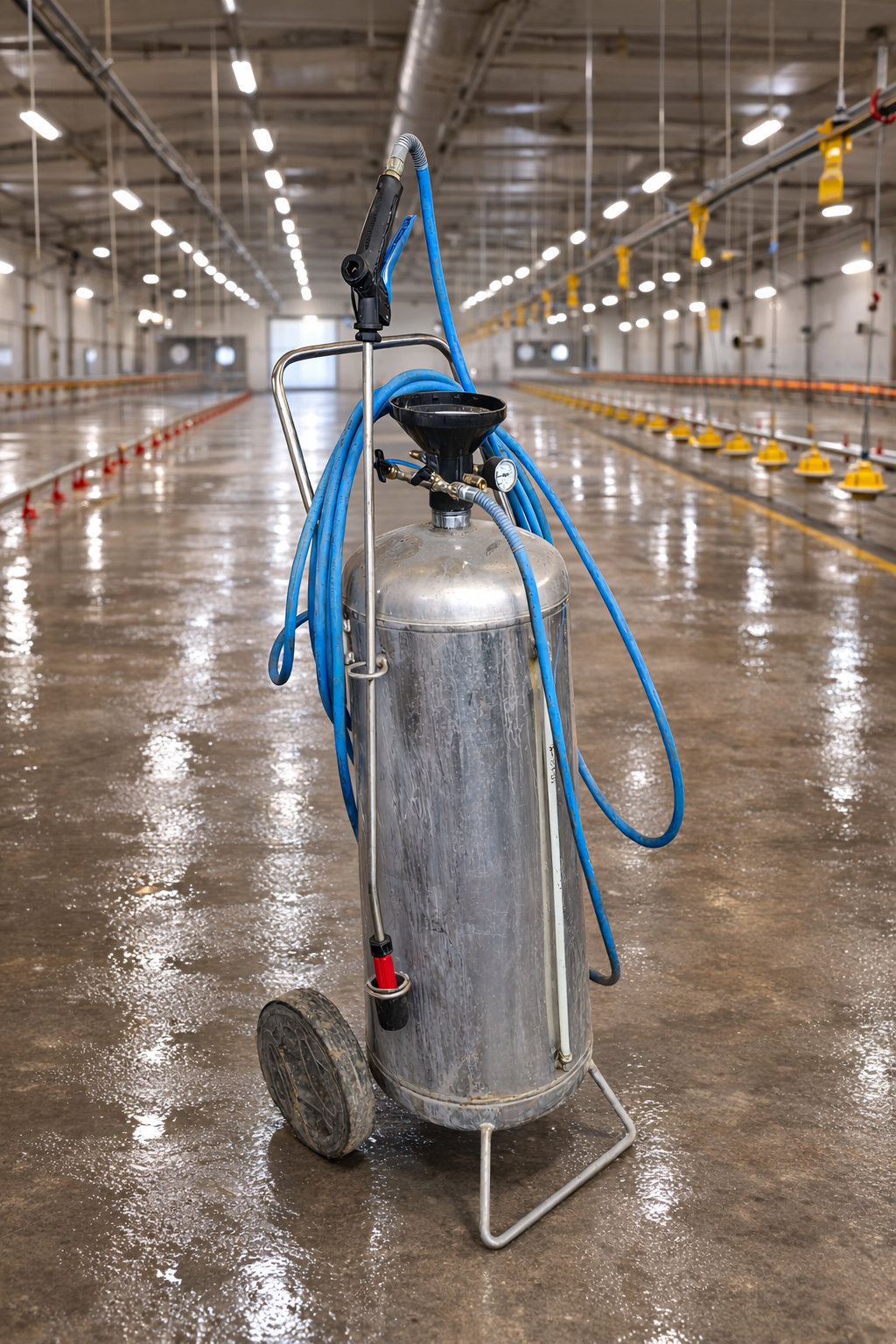

2006 • still in operation

Machines that keep working after many years

Some Lanzoni machines remain operational for many years. This image of a foamer from 2006 still in service is a good representation of the durability and solidity of our construction.

For this reason, alongside production we also offer a dedicated service for spare parts, component inspection and evaluation of possible refurbishment for older machines.

Do you need spare parts or service?

Send us the machine model and, if possible, a photo of the part to be replaced: this will help us assist you more quickly in identifying the correct spare part.

Spare parts & service info@lanzonionline.com WhatsApp

If available, please also indicate year of production, serial code and a photo of the component.
